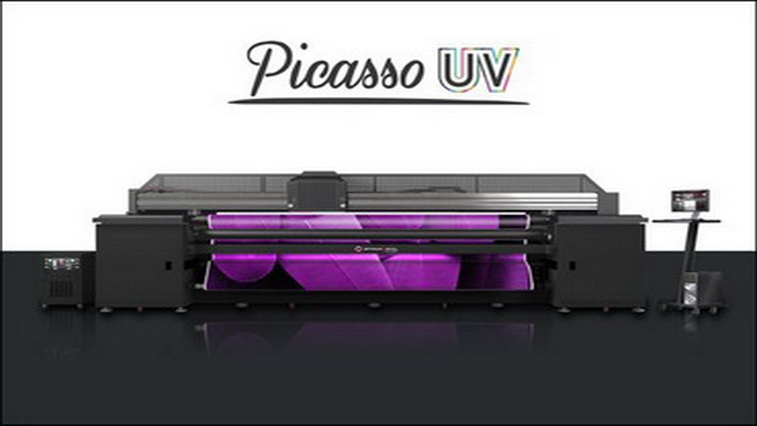

PICASSO UV

Technical Specifications

Print Width

Up to 3200 mm

Technology

Drop - On - Demand Piezo Inkjet Technology

Control System

PLC System

Color Scale



4 Colours (CMYK) and White UV Curable Inks

Optional Colours LC-LM ve Varnish

Printhead



Konica Minolta 6 pL / Kyocera KJ4A 4 pL

Printhead Quantity Up to 12 / Up to 6

Resolutions



Up to 1440 DPI

Material Types

PVC, Winyl, Backlit Him, Photo Paper, All Types of Leather, Billboard Paper, Banner, Textile, Mesh, One Way Vision, Canvas, Wallpaper

Material Thickness

Up to 20 mm

Curing System



10 W/cm² Water Cooled LED Curing Technology

RIP Software



Caldera

Temparature 20°C to 30°C
Humidity 30% to 80%
Machine Weight 1500 kg.
Dimensions 5200x1200x1800 mm
Power Requirement 30 Amps, 230 VAC supply
